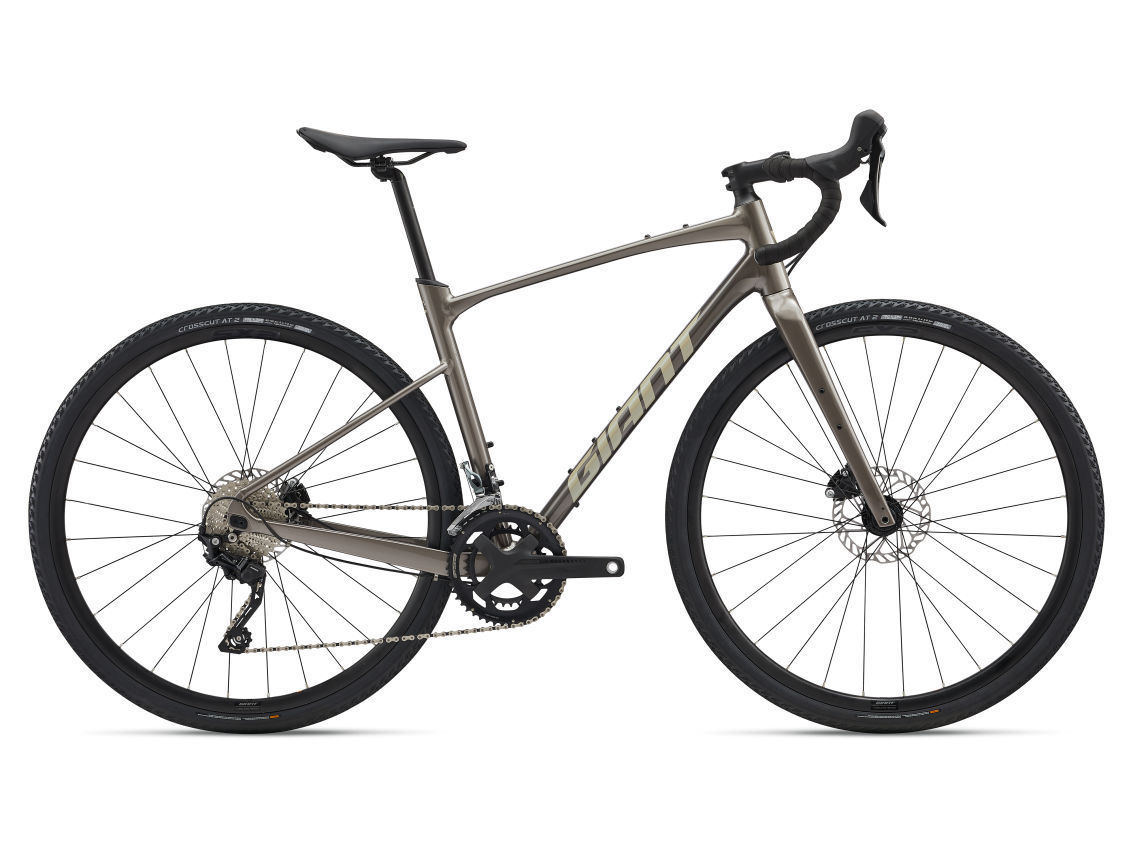

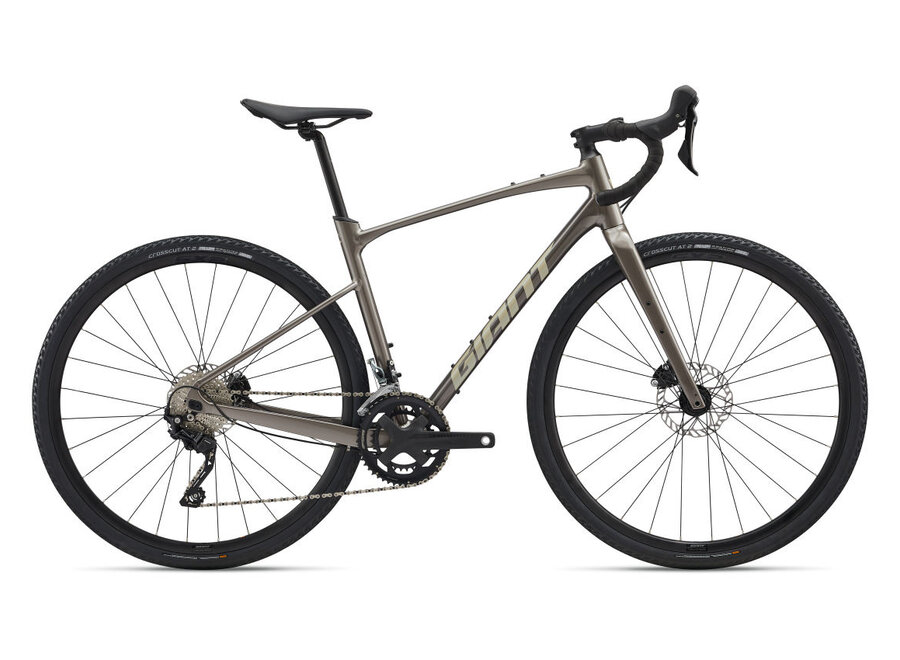

2025 Revolt 1

Product description

• Frame
  ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
• Fork
  Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar
  Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips
  cork tape with gel
• Stem
  Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost
  Giant D-Fuse, alloy, 14mm offset
• Saddle
  Giant Approach
• Shifters
  Shimano GRX RX-400, 2x10
• Front Derailleur
  Shimano Tiagra
• Rear Derailleur
  Shimano GRX RX-400
• Brakes
  Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers
  Shimano GRX RX-400 hydraulic
• Cassette
  Shimano HG500, 11x34
• Chain
  KMC X10 with Missing Link
• Crankset
  FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  FSA Mega EXO
• Rims
  Giant S-X2 Disc wheelset, alloy
• Hubs
  Giant alloy, 12mm thru-axle
• Spokes
  stainless
• Tires
  Giant CrossCut AT 2, 700x38c, tubeless
• Extras
  tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
• Max Tire Clearance
  53mm
